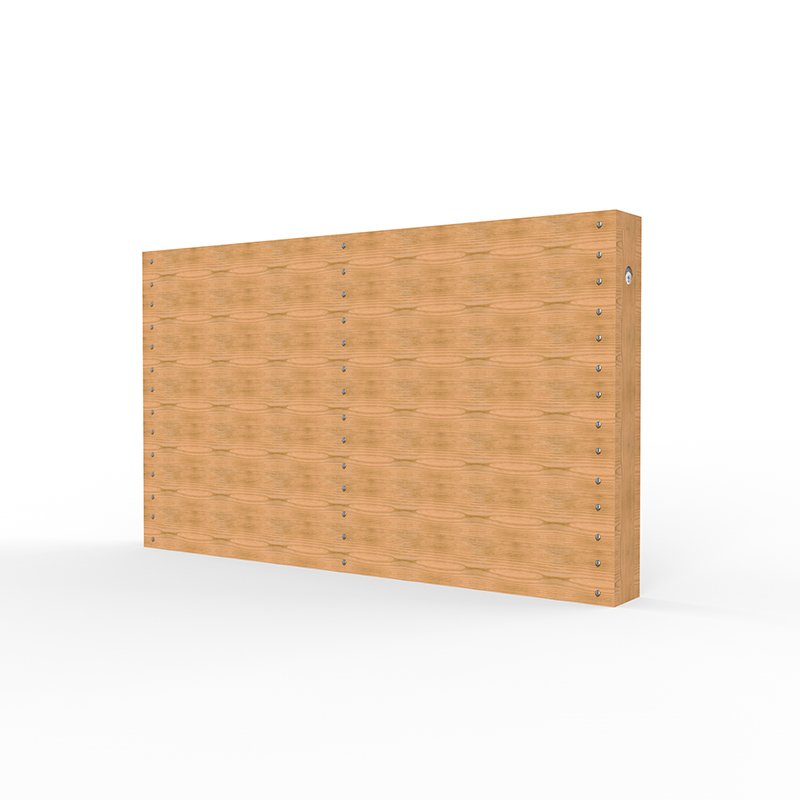

Ball Wall – Double Sided



Create the perfect resource for ball games within your play area with the addition of a Ball Wall.

This versatile piece of playground equipment can act as a demarcation barrier to zone off your playground.



  • SKU: AF003

Product Details

For schools with a lack of blank wall space, it is the ideal solution for mounting Target Boards acting as structured goal ends for football. The ball wall is also perfect for handball games.

Features

  • Laminated and tanalised redwood timber
  • Zinc plated fixings
  • 15 Year timber guarantee
  • Great for encouraging physical activity and ball games
Free Fall Height n/a
Minimum Surfacing Area n/a
Minimum Space Required n/a
Dimension of Largest Part 1800mm x 145mm
Mass of Heaviest Part (Kg) 5.23
Wheelchair Accessible No
Spare Part Availability 2-4 Weeks
Min persons required for assembly 2

Information

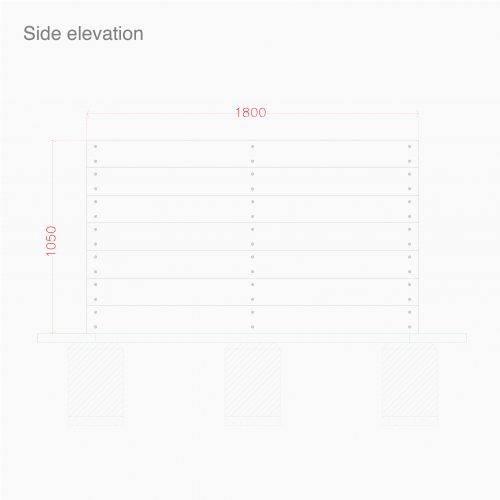

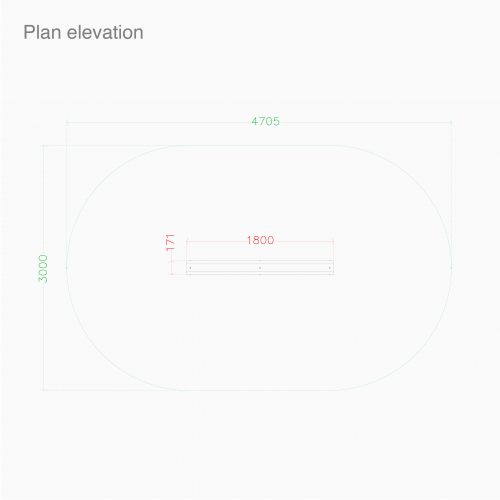

Schematics

Age Range

Material Specifications

Laminated Timber

Glulam redwood timber poles provide exceptional strength, have a greater resistance to splitting, and offer a high quality smooth finish.

Sawn Timber

Sawn redwood timber from FSC sustainable sources, all pressure treated to class 4 after all manufacturing processes have been completed.

Quality Steel Fixings

All nuts, bolts, screws and brackets are zinc plated or stainless steel to prevent against corrosion and to ensure longevity and safety.

Steel Cored Ropes

Colourful steel cored polypropylene ropes are used to ensure safety, durability, and vandal resistance.

Anti-slip Panels

Anti-slip panels are available with a grey or red rubberised all-weather anti-slip coating with a button profile bonded to a black HDPE plastic sheet.

HDPE Panels

High Density Polyethylene panel are highly durable and vandal resistant. The multicolored panels allow for intricate designs to be routed for additional play value.

Handholds

Large size professional handholds made from resin bound sand with stainless steel threaded inserts and anti-spin secondary fixing point.

Timber Paint

A high quality, satin finish, oil-based wood stain that is child-friendly and won’t stain clothes or peel away from the timber.

Painted Steelwork

Steelwork is either aluminium or galvanised mild steel and is treated and primed prior to receiving a vibrant painted finish.

Product Labels

Aluminium labels are affixed to all our equipment at quality control stage prior to dispatch. Each label contains our details, the product ID, and year of manufacture.

FSC Sourced Timber

We only use timber that has been responsibly sourced from managed forests with the FSC accreditation.

Timber Treatment

We pressure treat all our timber with Tanalith E wood preservative after all of our manufacturing processes are complete to class 4 which prevents against all forms of wood decay and insect attack.
