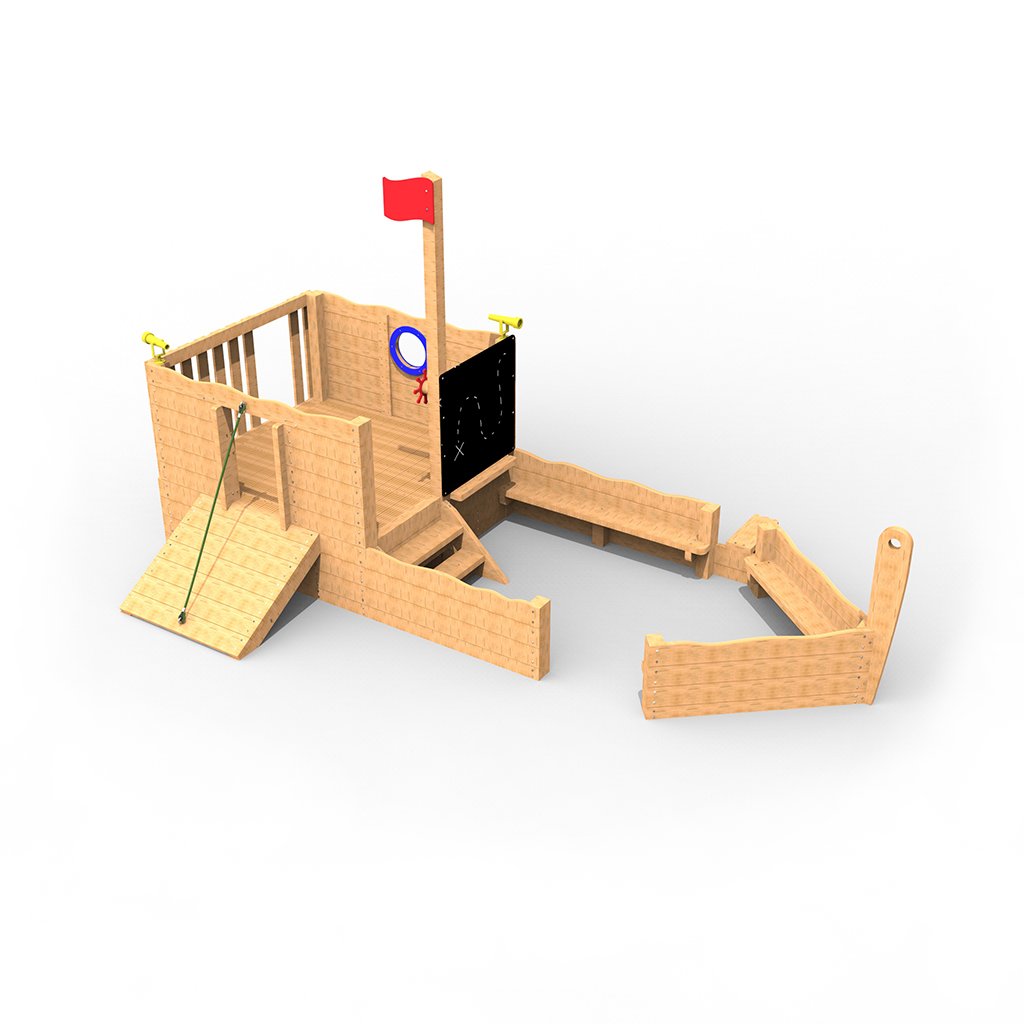

Play Boat – Spirit
The Spirit Play Boat comes complete with lots of additional play features. This fun item of play equipment includes a telescope, rope work for climbing, ramps, a black board and much more. The Spirit Play Boat is very popular with primary schools and seaside locations. All of our play boats are manufactured using the highest quality laminated timber.
Product Details
Features
- Laminated & tanalised redwood timber
- Zinc plated fixings
- 15 Year timber guarantee
- Natural aesthetic
- Crawl-through “Mine”
- Surrounding surfacing can be incorporated into sloping section
- Solid non load-bearing deck set at under 600mm in height
- Large handgrips
| Free Fall Height | – |
| Minimum Surfacing Area | – |
| Minimum Space Required | 8277mm x 6177mm |
| Dimension of Largest Part | 3600mm x 195mm |
| Mass of Heaviest Part (Kg) | |
| Wheelchair Accessible | No |
| Spare Part Availability | 2-4 Weeks |
| Min persons required for assembly | 2 |
Information

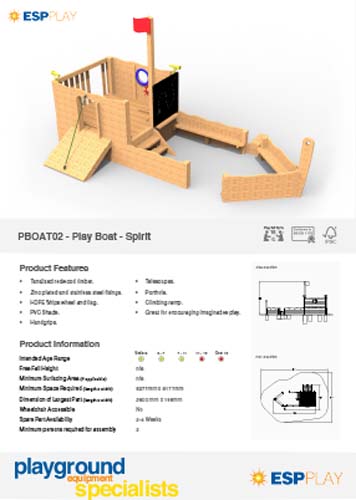

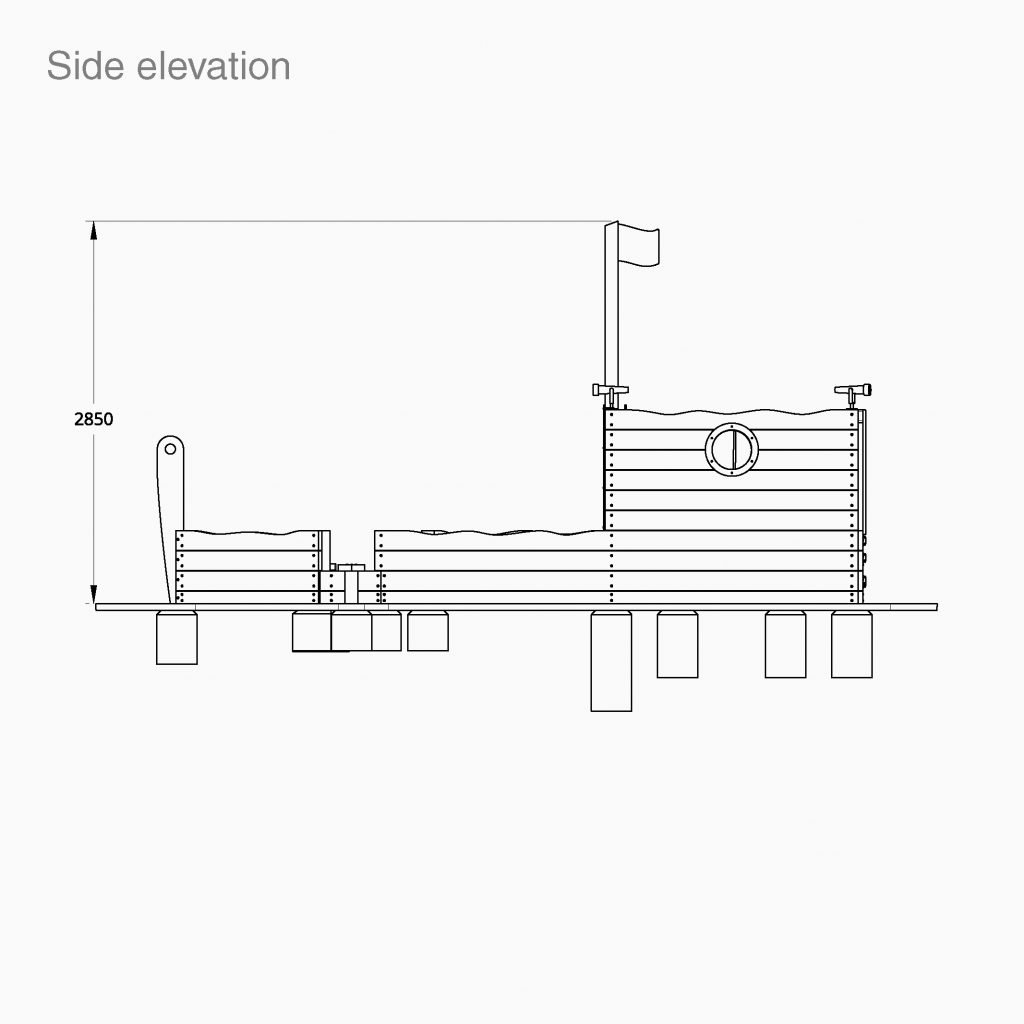

Schematics
Age Range
Material Specifications
Laminated Timber
Glulam redwood timber poles provide exceptional strength, have a greater resistance to splitting, and offer a high quality smooth finish.
Sawn Timber
Sawn redwood timber from FSC sustainable sources, all pressure treated to class 4 after all manufacturing processes have been completed.
Quality Steel Fixings
All nuts, bolts, screws and brackets are zinc plated or stainless steel to prevent against corrosion and to ensure longevity and safety.
Steel Cored Ropes
Colourful steel cored polypropylene ropes are used to ensure safety, durability, and vandal resistance.
Anti-slip Panels
Anti-slip panels are available with a grey or red rubberised all-weather anti-slip coating with a button profile bonded to a black HDPE plastic sheet.
HDPE Panels
High Density Polyethylene panel are highly durable and vandal resistant. The multicolored panels allow for intricate designs to be routed for additional play value.
Handholds
Large size professional handholds made from resin bound sand with stainless steel threaded inserts and anti-spin secondary fixing point.
Timber Paint
A high quality, satin finish, oil-based wood stain that is child-friendly and won’t stain clothes or peel away from the timber.
Painted Steelwork
Steelwork is either aluminium or galvanised mild steel and is treated and primed prior to receiving a vibrant painted finish.
Product Labels
Aluminium labels are affixed to all our equipment at quality control stage prior to dispatch. Each label contains our details, the product ID, and year of manufacture.
FSC Sourced Timber
We only use timber that has been responsibly sourced from managed forests with the FSC accreditation.
Timber Treatment
We pressure treat all our timber with Tanalith E wood preservative after all of our manufacturing processes are complete to class 4 which prevents against all forms of wood decay and insect attack.
