Tangled Paint – Lynx

tangled climbing frames

The Tangled Lynx frame is an evolution of the Funnel Web, but has a few extra parts that make this a challenge for children that have little to intermediate experience with the movements used in climbing.

Perfect for developing a child’s gross motor skills, the Lynx frame will develop their balance, coordination and perception of both distance and heights.



  • SKU: TGP002

Product Details

Younger, more adventurous explorers may access the equipment but we would recommend close supervision at all times.

Features

  • Laminated & tanalised redwood timber.
  • Zinc plated fixings.
  • Steel cored ropes.
  • 15 year timber guarantee.
  • Great for encouraging physical activity
  • Cost effective
  • Small footprint
Free Fall Height 1000mm
Minimum Surfacing Area 28.0m2
Minimum Space Required 5561mm x 5993mm
Dimension of Largest Part 2600mm x 120mm
Mass of Heaviest Part (Kg) 14.89
Wheelchair Accessible No
Spare Part Availability 2-4 Weeks
Min persons required for assembly 2

Information

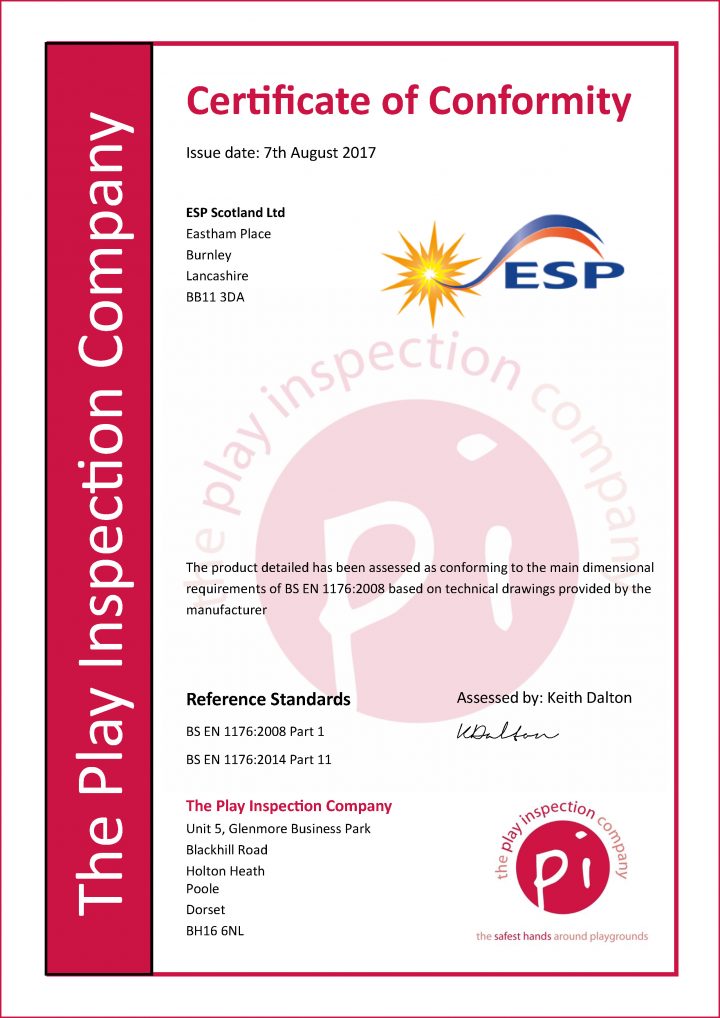

Certificate

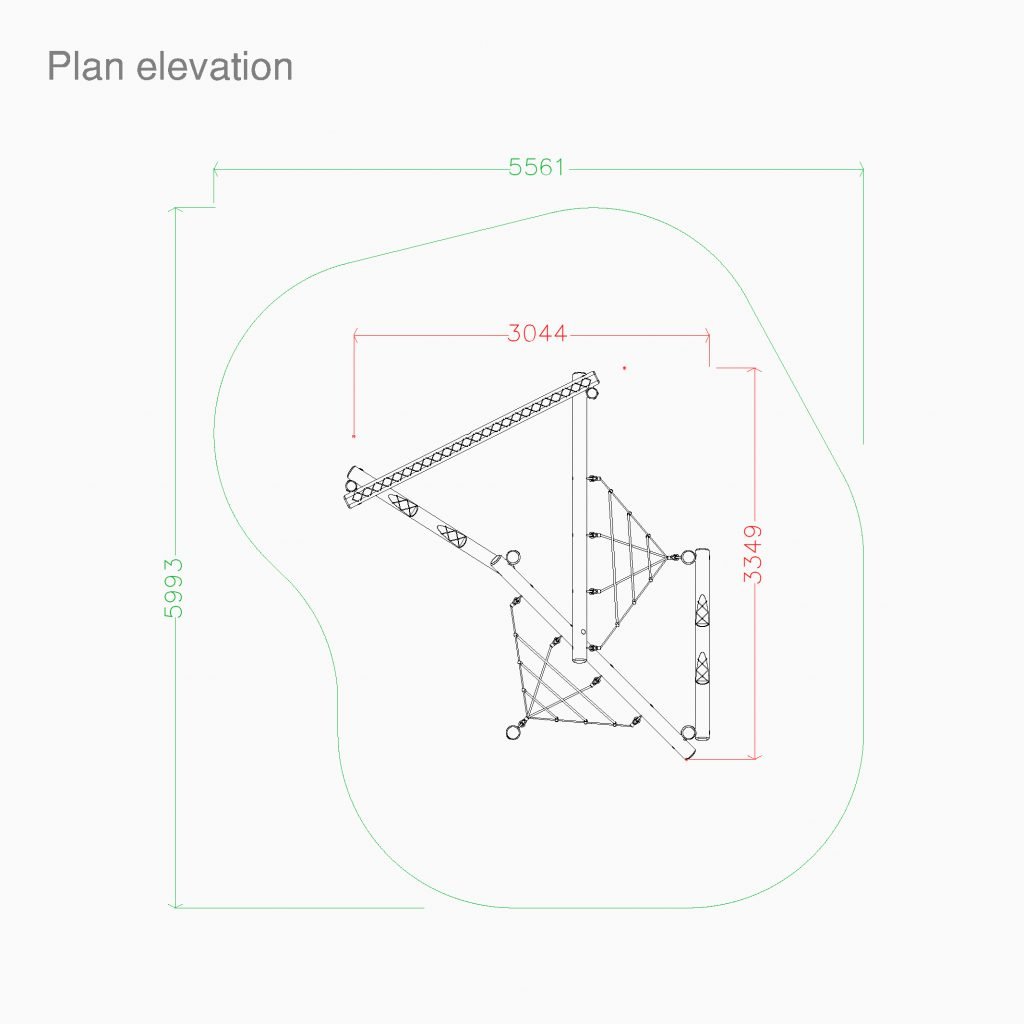

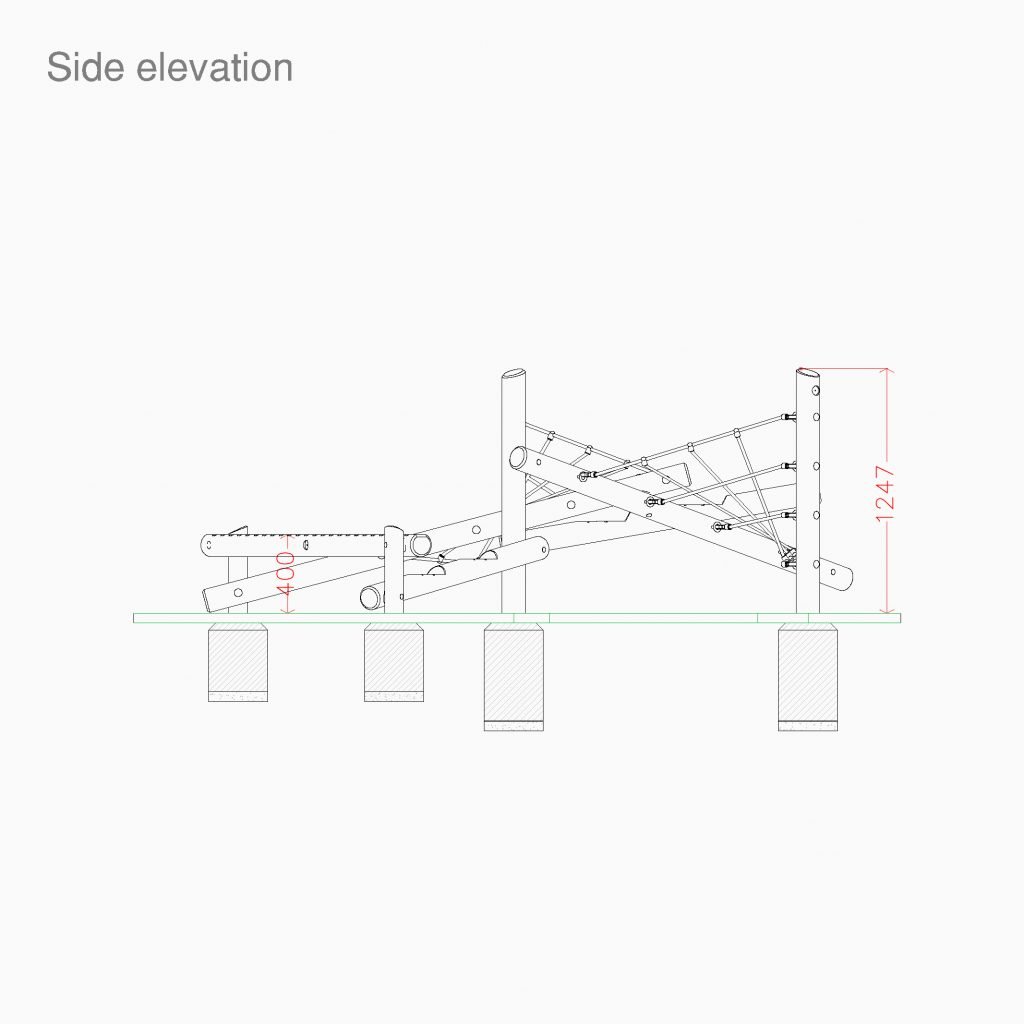

Schematics

Age Range

Material Specifications

Laminated Timber

Glulam redwood timber poles provide exceptional strength, have a greater resistance to splitting, and offer a high quality smooth finish.

Sawn Timber

Sawn redwood timber from FSC sustainable sources, all pressure treated to class 4 after all manufacturing processes have been completed.

Quality Steel Fixings

All nuts, bolts, screws and brackets are zinc plated or stainless steel to prevent against corrosion and to ensure longevity and safety.

Steel Cored Ropes

Colourful steel cored polypropylene ropes are used to ensure safety, durability, and vandal resistance.

Anti-slip Panels

Anti-slip panels are available with a grey or red rubberised all-weather anti-slip coating with a button profile bonded to a black HDPE plastic sheet.

HDPE Panels

High Density Polyethylene panel are highly durable and vandal resistant. The multicolored panels allow for intricate designs to be routed for additional play value.

Handholds

Large size professional handholds made from resin bound sand with stainless steel threaded inserts and anti-spin secondary fixing point.

Timber Paint

A high quality, satin finish, oil-based wood stain that is child-friendly and won’t stain clothes or peel away from the timber.

Painted Steelwork

Steelwork is either aluminium or galvanised mild steel and is treated and primed prior to receiving a vibrant painted finish.

Product Labels

Aluminium labels are affixed to all our equipment at quality control stage prior to dispatch. Each label contains our details, the product ID, and year of manufacture.

FSC Sourced Timber

We only use timber that has been responsibly sourced from managed forests with the FSC accreditation.

Timber Treatment

We pressure treat all our timber with Tanalith E wood preservative after all of our manufacturing processes are complete to class 4 which prevents against all forms of wood decay and insect attack.
